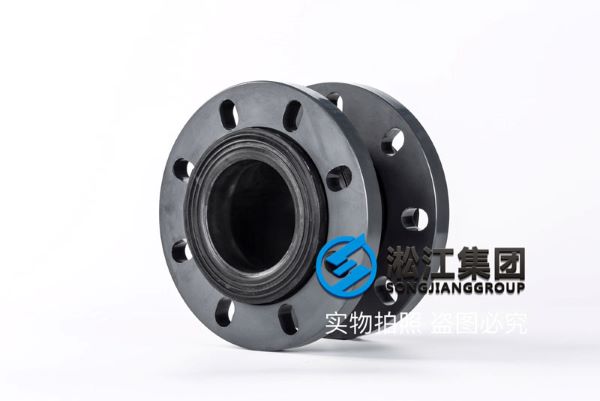

[PVC] ANSI/ASME Flanged Rubber Bellow “PN16”

[PVC] ANSI/ASME Flanged Rubber Bellow “PN16”

Shanghai Songjiang Group Introduce to you: [PVC] ANSI/ASME Flanged Rubber Bellow “PN16” Information. The rubber bellow is made of high-quality raw rubber; Scientific matching; It is processed by international advanced processing technology; Ensure the flexibility of rubber, ensure that the rubber ball bears high pressure and tensile deformation within a reasonable range; Ensure the different tolerance and service life of all kinds of rubber balls.

Name: [PVC] ANSI/ASME Flanged Rubber Bellow
Specification: DN100
Pressure: PN16
Length: 150mm
Axial compression: 18mm
Axial stretching: 10mm
Transverse displacement: 12mm
Deflection angle: 15
Inner rubber: EPDM (all made of Mitsui 4045, Japan, with a rubber content of about 46%, with qualification certificates such as material report and content test report from three parties). )
Outer layer: EPDM rubber (all made of Mitsui 4045, Japan, with a rubber content of about 46%, with qualification certificates such as material report and content test report from three parties). )
Skeleton layer: nylon cord fabric
Pressurized ring: multi-strand steel wire
Flange: PVC
Applicable medium: seawater, weak acid and alkali.
